Marka :
Kategori :AĞIRLIK TRANSMİTERLERİ
Specifications;
| Accuracy | |||
| Accuracy class (OIML approved) | |||
| Input sensitivity | 0.01% FS | ||
| Sensitivity | 0.03% FS | ||
| Zero and gain stability | |||
| A/D converter | 24bit Sigma-Delta | ||
| Digital filter | |||
| Reading frequency | 50Hz-400Hz | ||
| Loadcell | |||
| Number of Loadcells allowed | 8 adet (350ohm) | ||
| Analog input range | 1 mV/V - 2 mV/V - 5 mV/V - 160mV/V | ||
| Excitation voltage | 10V | ||
| Enviroment | |||
| Operating temperature range (OIML approved) | 0°C +50°C | ||
| Storage temperature range | -20°C +70°C | ||
| Operating voltage and power | 24V DC (18V … 36 V) - 5W | ||
| Operator handling and Display | |||
| Keyboard | 3 Tactile keys, 4-DIP switches | ||
| Weight display | |||
| Function display | |||
| Program Indicator | |||
| Housing | |||
| Material and protection class | Rail mounted plastic, IP20 | ||
| Weight | 0.1kg | ||
| Package weight and dimensions | 0.2kg, 15x24x6cm | ||
| Communication |
|
||
| Serial communication output |
|
||
| Parallel printer output |
|
||
| Binary (BCD) output |
|
||
| Remote display output |
|
||
| Digital input / output |
|
||
| Analog output |
|

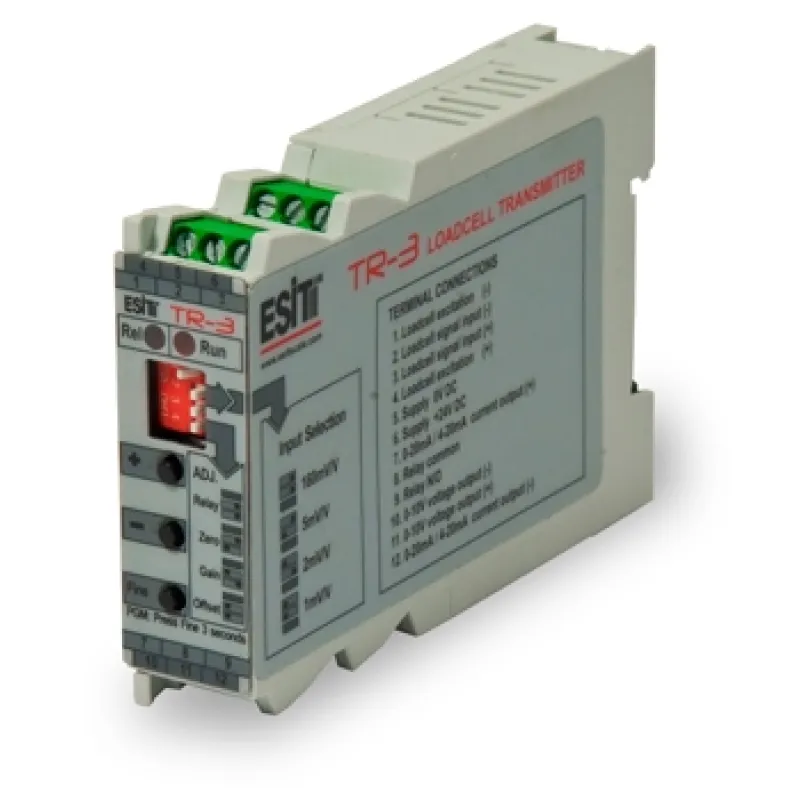

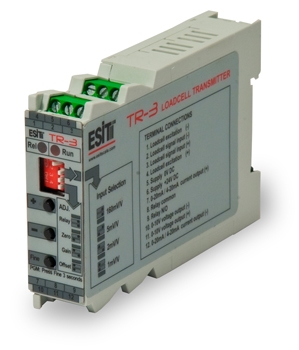

Esit TR3, is a micro processor based transmitter that processes the load cells signals to be used in the industry.
It is used as a signal converter for PLC or similar industrial control devices in weighing, batching, level control and
process control applications. With a user settable relay output, it is possible to control stand-alone systems
of simple on-off, fill-empty automations. The rail-mounting case forms an integrity with other panel components
and eases the connections.
The device which is aimed for industrial environments, features a three-way galvanic isolation. This eliminates
the risk of breakdowns of load cells against leakage currents and the output stability is not affected by the
electrical noises. Since all adjustments are done via keys, the drifts that may be seen with the potentiometric
elements are ceased.
